TracStar V730M 7.3米C,Ku,DBS频段通信卫星天线




7.3米C,Ku,DBS频段天线

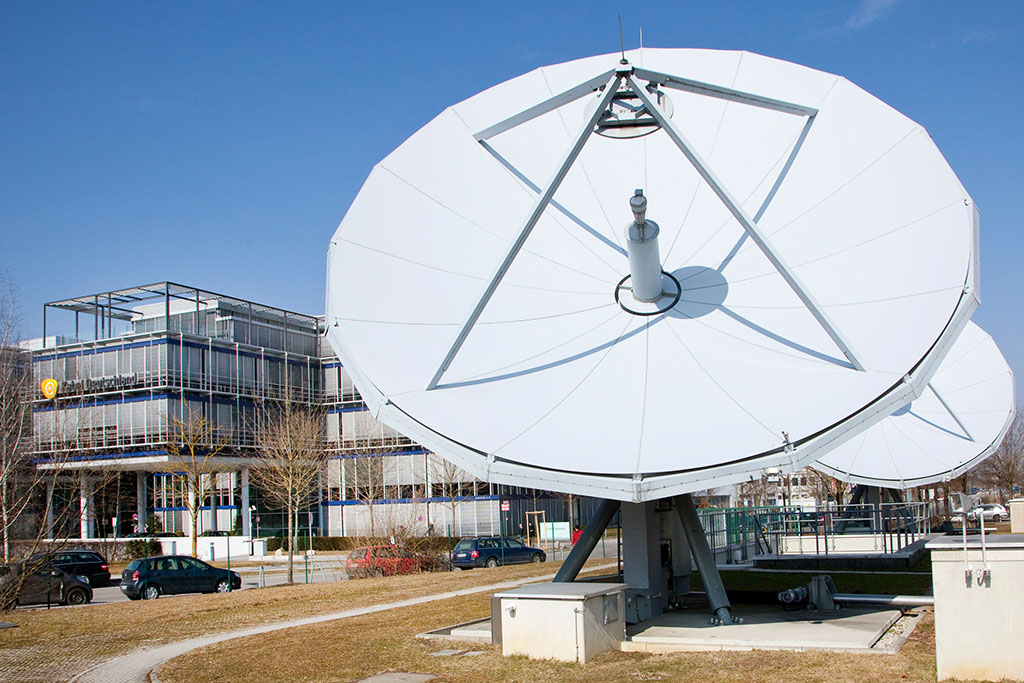

TracStar V730M 7.3米天线为发送/接收提供,接收L到DBS频段的应用。天线采用反射器设计,包括成型面板,轮廓径向和机加工轮毂组件。



射频性能
它采用卡塞格林馈电和子滤波器设计,可实现高增益,低噪声温度,高天线效率以及噪声和微波干扰抑制。反射器由镀锌的基座支撑,为指向和跟踪提供所需的刚度。基座设计用于轨道弧覆盖,适应地面或屋顶安装。

7.3 Meter C, Ku, DBS-Band Earth Station Antenna

 7.3-meter antenna delivers exceptional performance for transmit/ receive and receive only applications for L through DBS- band frequencies. This antenna offers a reflector design that incorporates precision-formed panels, contoured radials and a machined hub assembly.


RF Performance

It features an innovative Cassegrain feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.


Compliance

The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat (F3, E3) and Eutelsat (L, S1) requirements. All configurations meet own type-approved quality assurance and performance guarantee.

Frequency (GHz)

 3.625 -

5.850 -

3.625 -

5.850 -

3.400 -

5.850-

10.700-

13.750 -

10.700-

17.300-



4.200

6.425

4.200

6.425

4.200

6.725

12.750

14.500

12.750

18.400

Antenna Gain, Midband dBi (2)

48.10

51.70

48.10

51.80

48.00

51.80

56.50

58.10

56.90

59.60

VSWR Pattern Beamwidth (2)

1.25:1

1.25:1

 1.25:1

1.25:1

 1.30:1

1.30:1

 1.30:1

 1.30:1

 1.30:1

 1.30:1

-3 dB, at midband

0.67°

0.45°

0.67°

0.44°

0.67°

0.43°

0.23°

0.20°

0.23°

0.17°

 -15 dB, at midband Antenna Noise Temperature

1.41°

0.94°

1.41°

0.92°

1.41°

0.90°

0.48°

0.42°

0.48°

0.36°

5° Elevation

52 K



49 K



53 K



87 K



75 K



 10° Elevation

43 K



40 K



44 K



73 K



60 K



 20° Elevation

37 K



35 K



39 K



65 K



51 K



 40° Elevation Typical G/T (dB/K) (3)

35 K



33 K



37 K



61 K



47 K



4.000 GHz, 30 K LNA

29.8



30.0



29.6











 11.725 GHz, 70 K LNA













35.2



36.1



Axial Ratio

0.50 dB

0.50 dB

















Power Handling (total) Cross Polarization Isolation



10 kW CW



10 kW CW



10 kW CW



2 kW CW



2 kW CW

On Axis

30.8 dB

30.8 dB

35.0 dB

35.0 dB

35.0 dB

35.0 dB

35.0 dB

35.0 dB

35.0 dB

35.0 dB

 Within 1.0 dB beamwidth Port to Port Isolation

30.8 dB

30.8 dB

30.0 dB

30.0 dB

30.0 dB

30.0 dB

35.0 dB

35.0 dB

35.0 dB

30.0 dB

Rx/Tx (Rx frequency)

0 dB

-70 dB

0 dB

-50 dB

0 dB

-70 dB

0 dB

-70 dB

0 dB

-75 dB

 Tx/Rx (Tx frequency)

-85 dB

0 dB

-85 dB

0 dB

-85 dB

0 dB

-85 dB

0 dB

-85 dB

0 dB

Sidelobe Performance





Meets ITU-

RS-580, FCC





RF Specification

975-

3475

975-

3478

 975

-3480

 975-

3484

 975-

3486
