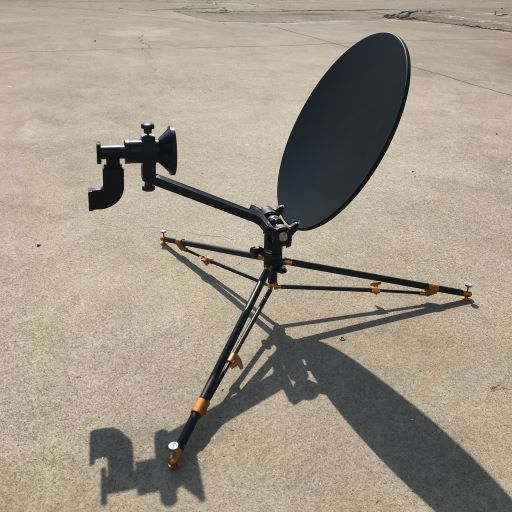

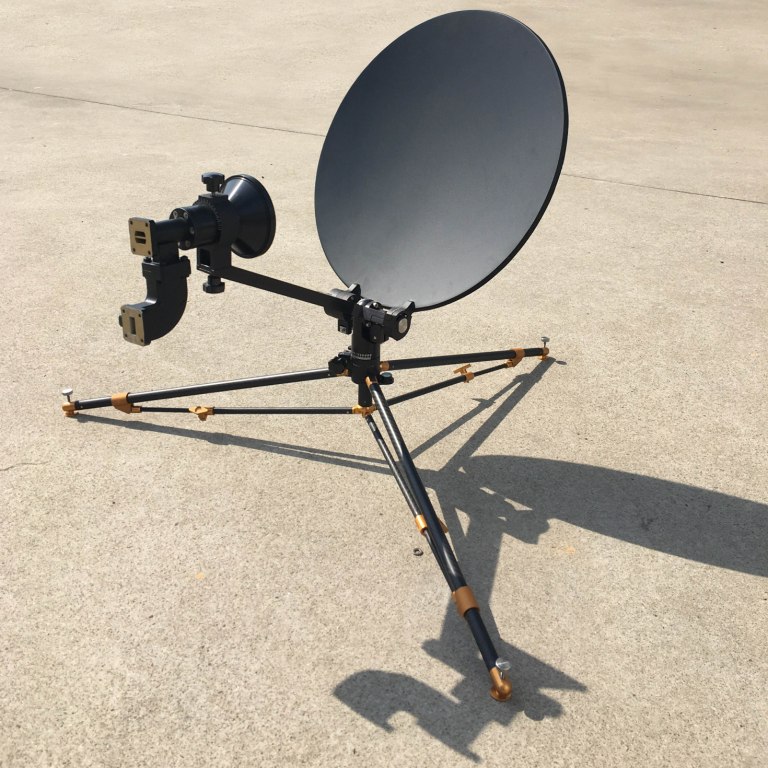

TracStar V40T 0.4米碳纤维通信卫星天线

0.4m碳纤维天线

特征:
碳纤维板
高增益和旁瓣性能
5分钟设置
方便快速调整
聚丙烯三角架尼龙背包盒



  R.F  SPECIFICATIONS

  Ku-Band

                              RECEIVE                                                      TRANSMIT

1. Frequency(GHz)

                             12.25-12.75                                                        14-14.5

2. Gain(dBi)

                   31.3+20log(F/12.5)dBi                             32.5+20log(F/14.25)dBi

Parabolic

3. Antenna Shape

4. Sidelobes

CCIR.580-6

5. The First Sidelobe Level

-14dB

                                                                  Linear Pol

6. Polarization

7. Tx to Rx Isolation

85dB(Including filter)

8. Cross Pol Isolation

On Axis



30dB

9. VSWR

                               1.3:1                                                              1.3:1

10. Feed Interface

                               WR75                                                             WR75

  MECHANICAL SPECIFICATION

  ENVIRONMENTAL SPECIFICATION

1. Antenna Type                                                   Offset

1. Wind Loading, Operational (With Ballast)

14m/s

2. Drive Type                                                       Manual

2. Temperature, Operational

-40°C to 60°C

3. AZ Travel                                                           ±90°

2. Temperature, Storage

-55°C to 70°C

4. EL Travel                                                       10° to 90°

3. Rain

12mm/h

5. POL Travel                                                        ±90°

4. Relative Humidity

0 to 1

6. Reflector Material                                       Carbon fiber

5. Solar Radiation                          360 BTU/h/ft2 (1000Kcal/h/m2)

7.    Reflector Segments                                           1

8.    Mount Type                                                    Tripod

9.    Surface Accuracy                                 0.3mm (R.M.S)

10.  Antenna Weight(N.W.)                                3.5kg

11.  Feed Holder Bearing                                   1.0kg

6. Ice                                                                          12mm

                                                     540mm×400mm×110mm

(Excluding LNB, power amplifier,

12. Stowed Size                           power supply and other followed

                   equipment)

Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
